Mini Chamfering Machine Pneumatic Beveling Machine for Inner Hole Deburring Linear Spare Carbide Turning Inserts and Bearings

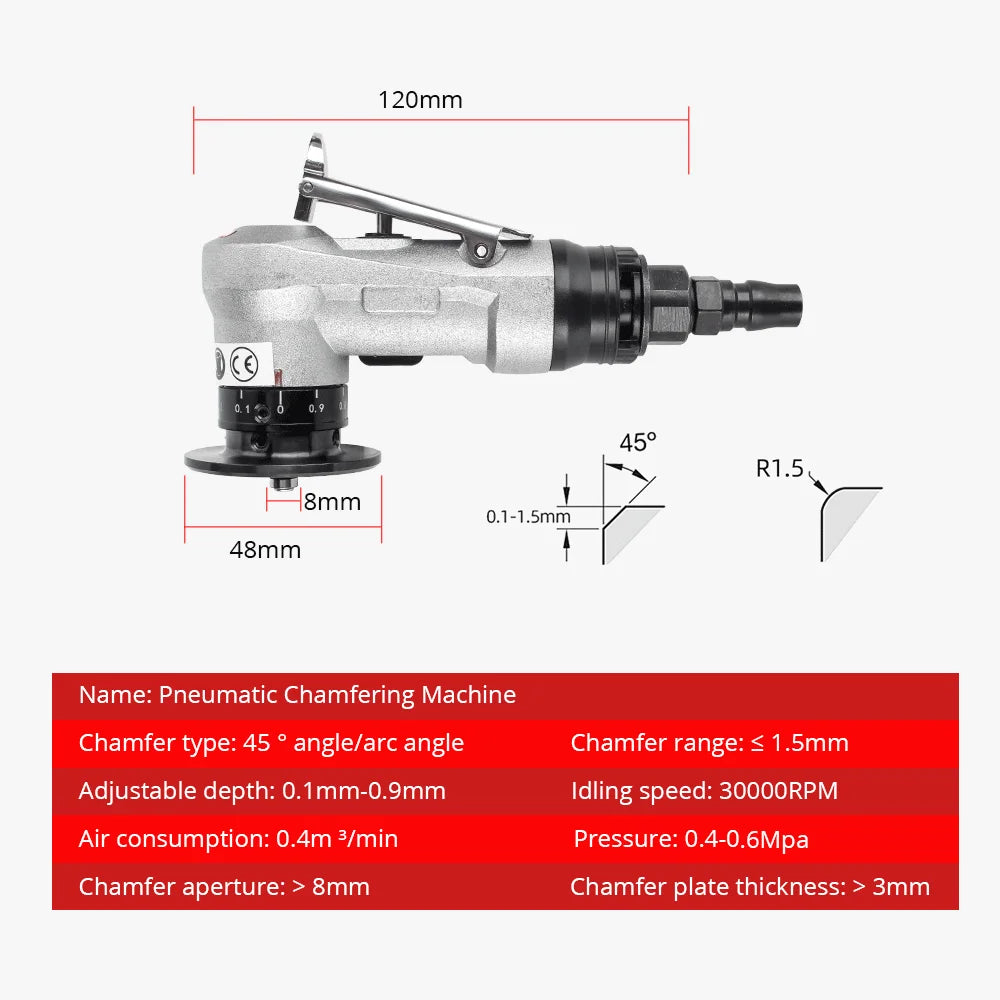

Name: Pneumatic Chamfering Machine

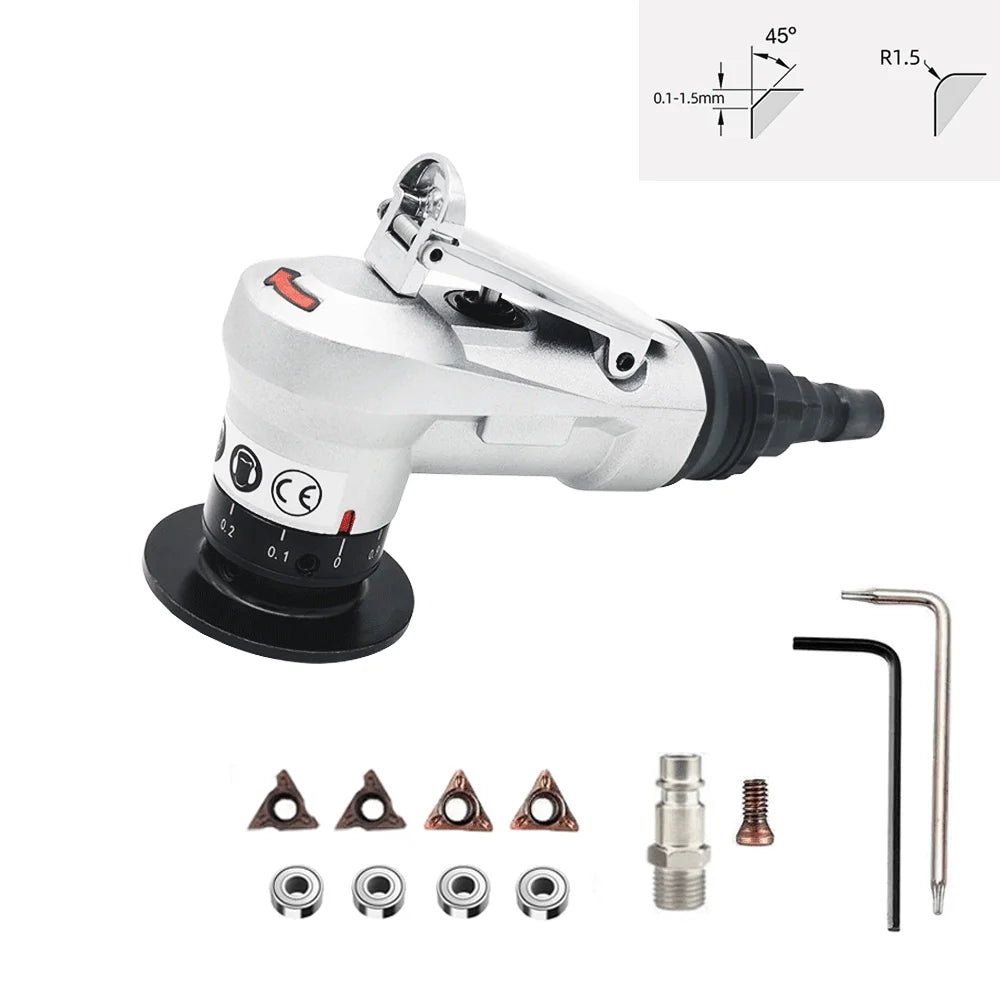

Chamfer type: 45 ° angle/arc angle

Chamfer range: ≤ 1.5mm

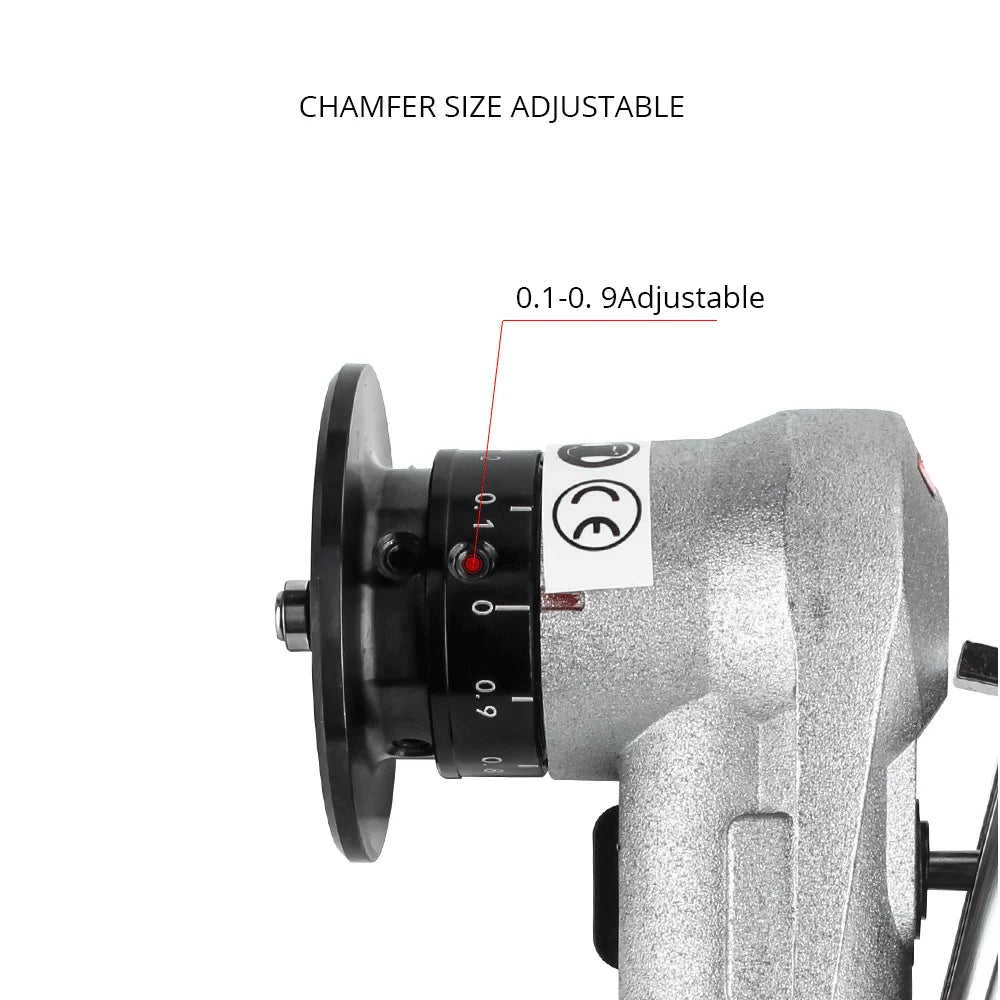

Adjustable depth: 0.1mm-0.9mm

Idling speed: 30000RPM

Air consumption: 0.4m ³/min

Pressure: 0.4-0.6 Mpa

Chamfer aperture: > 8mm

Chamfer plate thickness: > 3mm

Product List

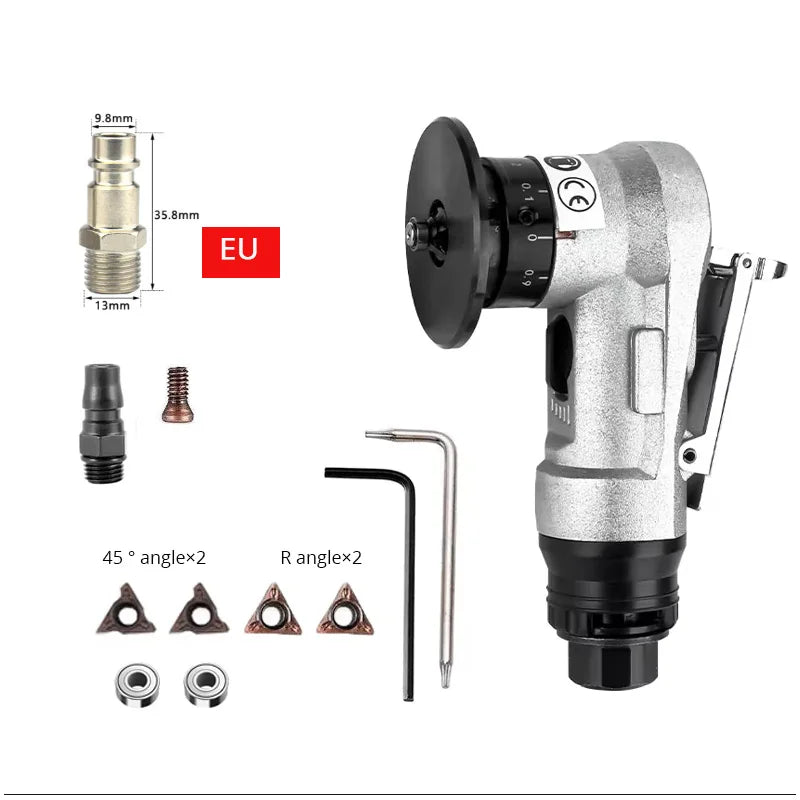

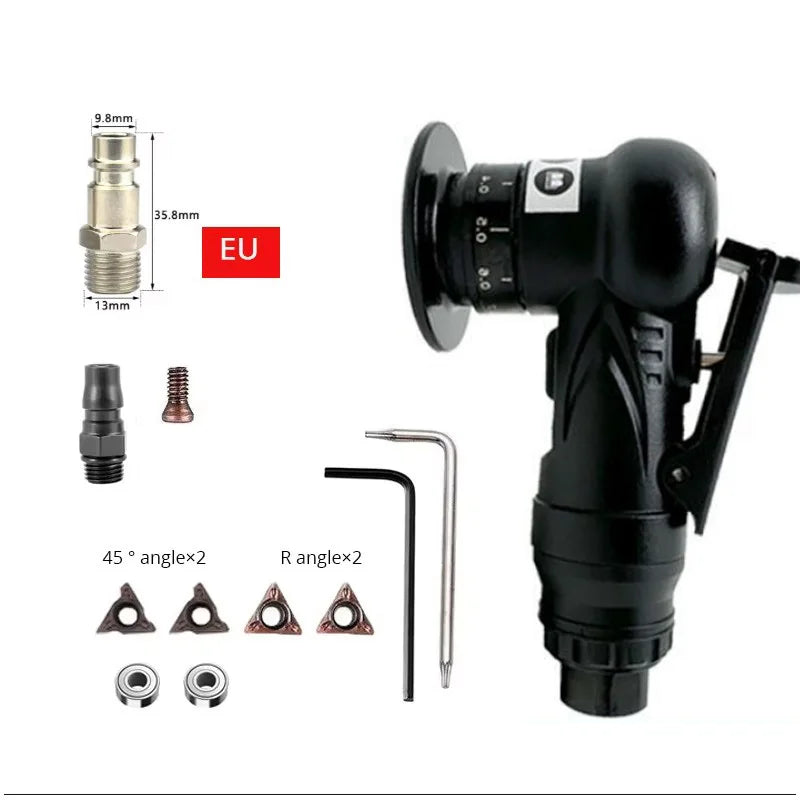

EU Connector:Machine × 1, 45 ° angle blade × 2, rounded blade × 2, bearing × 2, wrench × 2, European standard joint × 1；

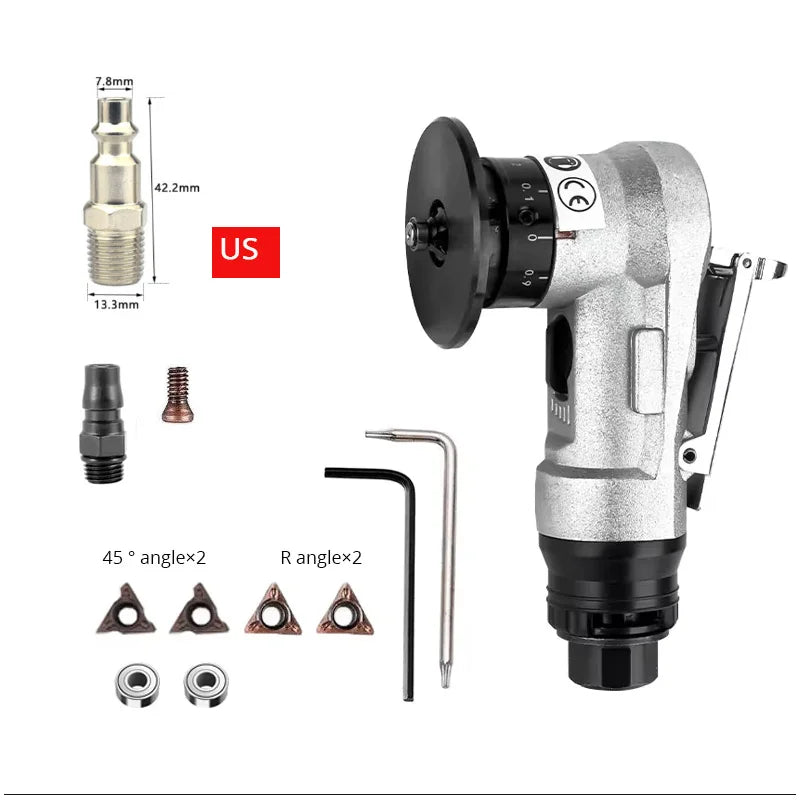

US Connector:Machine × 1, 45 ° angle blade × 2, rounded blade × 2, bearing × 2, wrench × 2, American standard joint × 1；

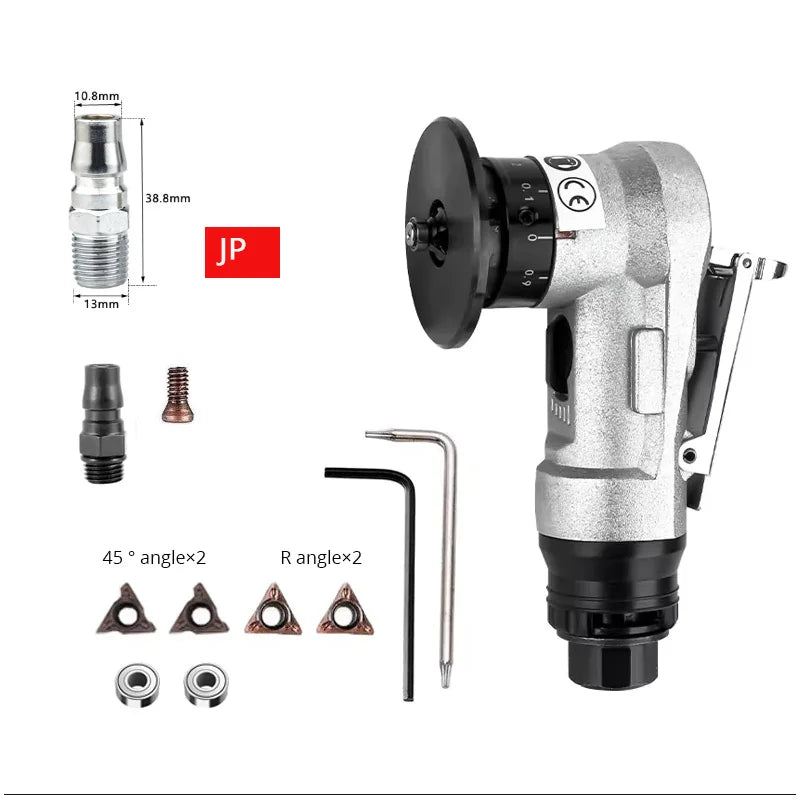

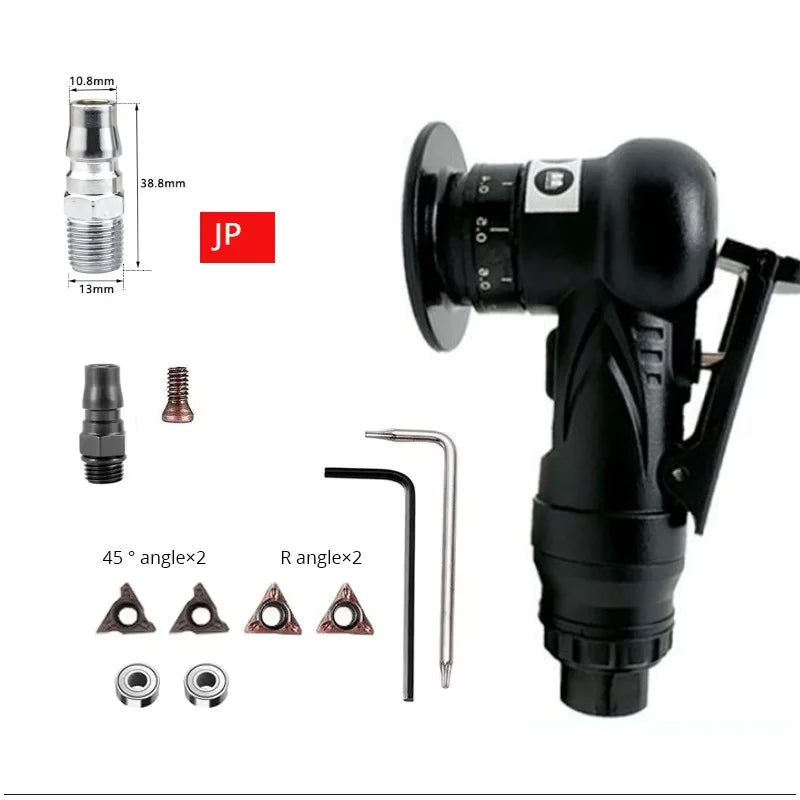

JP Connector:Machine × 1, 45 ° angle blade × 2, rounded blade × 2, bearing × 2, wrench × 2, Japanese standard joint × 1；
